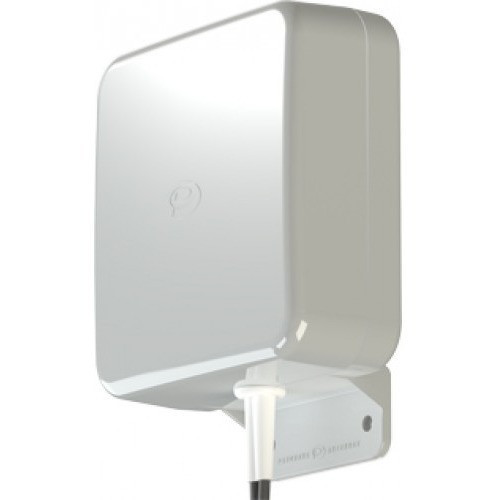

The WMMGG antenna provides an innovative and future proof solution for 2G / 3G and 4G networks. Incorporating two seperately fed ultra wideband and elements in a single housing along with and active GPS/GNSS antenna the WMMG is rquipped to provide client side MiMo and diversity support for the networks of today and tomorrow.
With 2dBi gain at 698-960MHz, 5dBi gain at 1710-2170MHz and 4dBi gain at 2.2-2.7GHz the WMMG provides extra gain performance where it is needed most. The GPS/GNSS module offers an integrated 26dB gain LNA.
The rugged, weatherproof housing is designed for wall mounting. Wall and mast mount brackets are provided.
The cellular/LTE feeds are fitted with 5 metres (16') of fitted low loss double shielded twin cable and the GPS/GNSS is supplied with 6m (20') of RG174. This configuration minimises exposed connector joints and simplifies cable management for easy installation.
-
SKU:
- 1036138335
Manufacturer:
Panorama Antennas Ltd
Manufacturer Part Number:
WMMGG-7-27-5SP
Manufacturer Website Address:
http://www.panorama-antennas.com
Brand Name:
Panorama Antennas
Product Name:
Cellular / LTE Gain MiMo Antenna + GPS/GNSS
Product Type:
Antenna
Directivity:
Omni-directional
Operating Frequency Range:
698 MHz to 960 MHz,1710 MHz to 2700 MHz,1562 MHz to 1612 MHz
Antenna Gain (Isotropic):
5 dBi
Connector Type:
SMA
Product Color:
Pure White
Height:
6.10"
Width:
6.10"
Form Factor:
Desktop/Wall/Mast
Weight (Approximate):
2.43 lb
Application/Usage:
Cellular Network,GPS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2,WEEE,REACH
sku variation:
The Panorama Antennas WMMGG-7-27-5SP is also known as PAN-WMMGG7275SP or WMMGG7275SP
Brand Logo:
https://content.etilize.com/Brand-Logo/1036138335.jpg
Short Description:
Panorama Antenna, Mimo, Omni-directional Wall/post Antenna, 698 - 2700MHZ, With Gps, 5M / 16', SMA (M)
