Durable and Cost-Effective

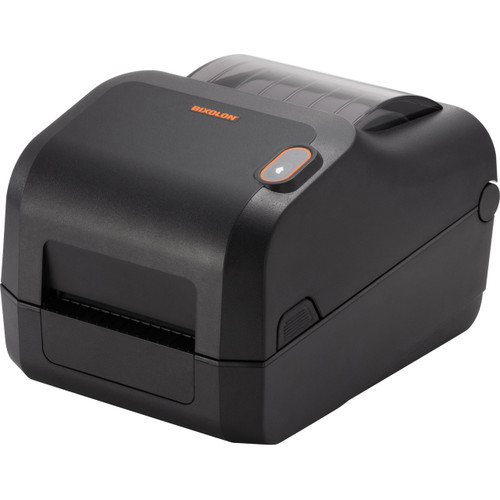

The XD3-40t, a 4-inch (118mm) cost-effective Direct Thermal or Thermal Transfer Desktop Barcode and Label printer. Featuring a compact, clamshell design paired with high reliability which is ideal for labelling applications within the Manufacturing, Retail, Transport and Logistics and Healthcare industries.
Supporting data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes paired with memory space of up to 64MB SDRAM, 125MB Flash Memory. Multiple connectivity options including USB 2.0 as standard, plus optional USB + Serial + Ethernet. Flexible core ribbon handling for 1/2-inch and 1-inch options (74m and 300m). While accompanied with an optional field-installable Peeler and an external paper supply, the label printer offers an adjustable paper guide plus holder and space for a media roll diameter of up to 127mm.
The XD3-40t is compatible with market-leading programming languages including SLCS™, BPL-Z™ and BPL-E™ and provides Smart Switch language programming without having to set the mode. Harmonizing with label design software including BIXOLON's Label Artist-II™ and BarTender® UltraLite for BIXOLON. The XD3-40t also allows easy printer management and support with a single button setup with visual LED, comprehensive online 'How to' videos and an onboard QR code with direct links to online support resources. All complimented by a 2-year warranty as standard.
-
SKU:
- 1072132004
Manufacturer:
Bixolon America, Inc
Manufacturer Part Number:
XD3-40TK
Manufacturer Website Address:
http://www.bixolon.com
Brand Name:
Bixolon
Product Series:
XD3-40
Product Model:
XD3-40t
Product Name:
XD3-40t Direct Thermal/Thermal Transfer Printer
Product Type:
Direct Thermal/Thermal Transfer Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.09"
Barcode Symbology Supported:
1D,Code 11,Code 39,Code 93,Code 128,EAN-13,EAN-8,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Plessey,POSTNET,GS1 DataBar (RSS-14),Standard 2 of 5,UPC-EAN Extensions,UPC-A,UPC-E,IMB,2D,AZTEC,Codablock,Code 49,Data Matrix,Maxi Code,Micro PDF-417,P
Connectivity Technology:
Wired
Peel Facility:
Yes
Application/Usage:
Desktop,Manufacturing,Retail,Warehouse,Logistic
Features:
Compact
USB:
Yes
Media Type:
Gap,Black Mark,Notch,Continuous Label,Fanfold,Label
Media Sensor:
Black Mark Sensor,Gap Sensor,Transmissive Media Sensor,Reflective Media Sensor,Head Open Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Language Emulation:
EPL,ZPL II,SLCS,BPL-Z,BPL-E
Power Source:
AC Supply
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Product Color:
Black
Height:
7.3"
Width:
8.3"
Depth:
11.2"
Weight (Approximate):
5.73 lb
Cables Included:
USB
Optional Connectivity:
Serial (RS-232),Ethernet
Platform Supported:
PC,SPARC,Mac
Energy Star:
Yes
sku variation:
The Bixolon XD3-40TK is also known as BIX-XD340TK or XD340TK
Brand Logo:
https://content.etilize.com/Brand-Logo/1072132004.jpg
Short Description:
Bixolon, XD3-40TK, Black Color, Built In Usb, 5IPS Printing Speed, Thermal Transfer, 203 Dpi, Power Supply / US Power Cord, Warranty: Limited 2 Years - TPH 1 Year
