Robust and highly featured

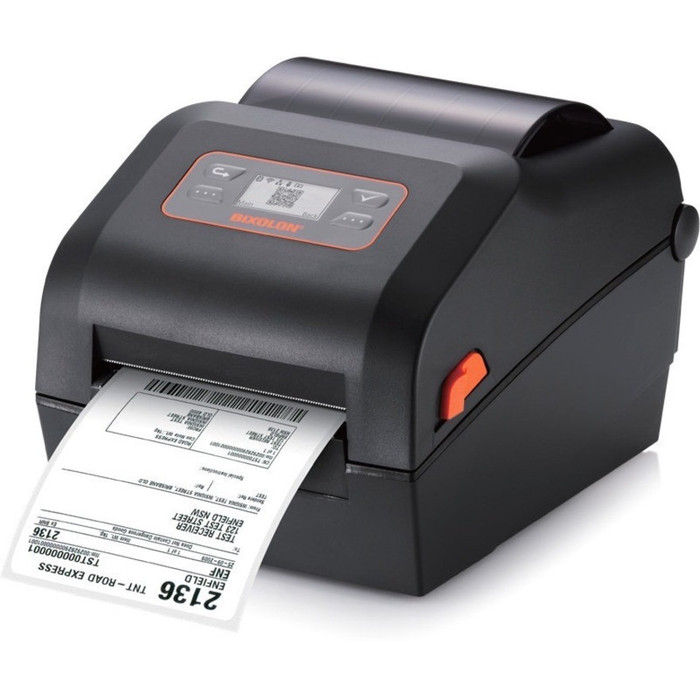

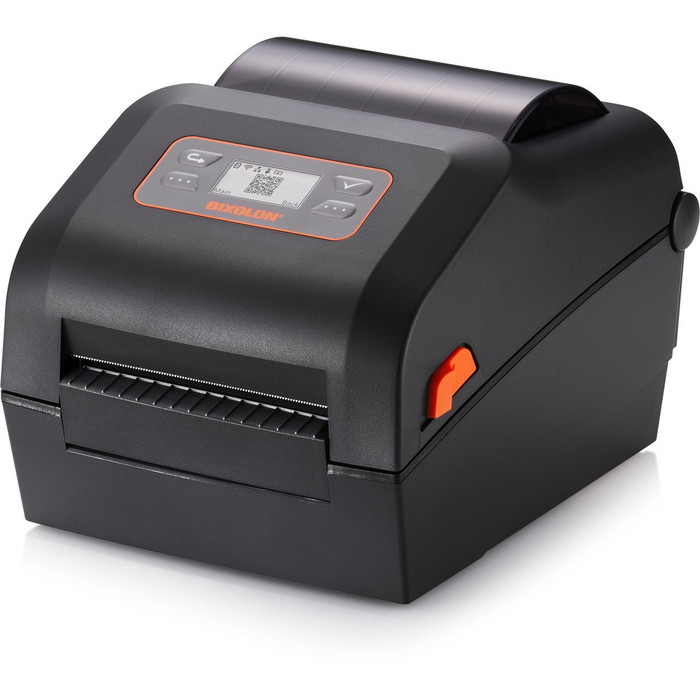

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d's standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.
Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON's XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON's Label Artist-II™ and BarTender®.
-
SKU:
- 1071999351
Manufacturer:
Bixolon America, Inc
Manufacturer Part Number:
XD5-40DK
Manufacturer Website Address:
http://www.bixolon.com
Brand Name:
Bixolon
Product Series:
XD5-40
Product Model:
XD5-40d
Product Name:
XD5-40d Direct Thermal Printer
Product Type:
Direct Thermal Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.01 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4"
Barcode Symbology Supported:
1D,Code 11,Code 39,Code 93,Code 128,EAN-13,EAN-8,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Plessey,POSTNET,GS1 DataBar (RSS-14),Standard 2 of 5,UPC-EAN Extensions,UPC-A,UPC-E,IMB,2D,AZTEC,Codablock,Code 49,Data Matrix,Maxi Code,Micro PDF-417,P
Real Time Clock:
Yes
Application/Usage:
Desktop,Manufacturing,Retail,Transportation & Logistic,Healthcare
Features:
Compact
Standard Memory:
64 MB
USB Host:
Yes
USB:
Yes
Media Type:
Gap,Black Mark,Notch,Continuous Label,Fanfold
Media Sensor:
Transmissive Media Sensor,Reflective Media Sensor,Head Open Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Language Emulation:
EPL,ZPL II,SLCS,BPL-Z,BPL-E
Power Source:
Power Adapter
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Product Color:
Black
Height:
6.7"
Width:
7.6"
Depth:
9.8"
Weight (Approximate):
4.17 lb
Power Cable Localization:
US
Cables Included:
USB
Optional Connectivity:
Wireless LAN
Platform Supported:
PC,SPARC,Mac,Android,iOS
Energy Star:
Yes
sku variation:
The Bixolon XD5-40DK is also known as BIX-XD540DK or XD540DK
Brand Logo:
https://content.etilize.com/Brand-Logo/1071999351.jpg
Short Description:
Bixolon, Black Color, Built In Usb, USB Host, 7IPS Printing Speed, Direct Thermal, 203 Dpi, Power Supply / US Power Cord, Warranty: Limited 2 Years - TPH 1 Year
