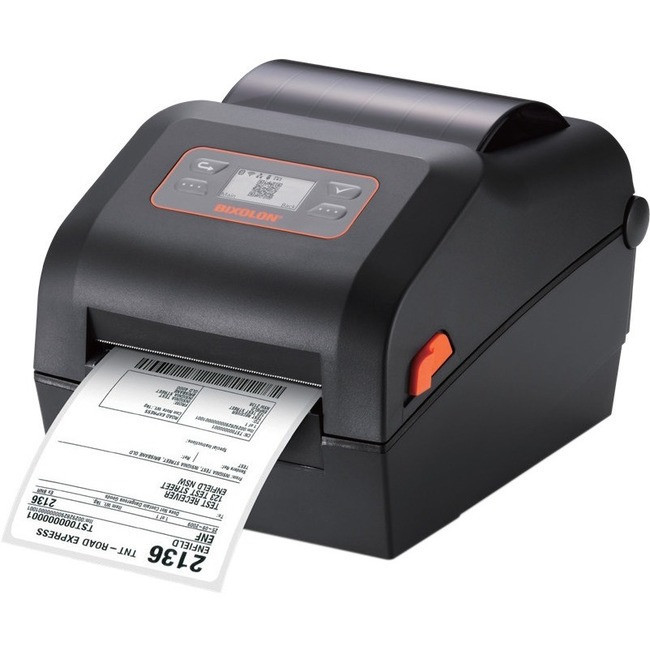

The compact, 4-inch Direct Thermal XD5-40d provides a performance feature set supporting multiple media types and range of wired and wireless interfaces. Fast processing and print speeds up to 7ips, the printer has optional high resolution and LCD display choices. 300dpi for finer output and LCD display for easier setup and use, or to receive instructional and alert information that provides links to model specific support pages.
-
SKU:
- 1073137827
Manufacturer:
Bixolon America, Inc
Manufacturer Part Number:
XD5-40DWK
Manufacturer Website Address:
http://www.bixolon.com
Brand Name:
Bixolon
Product Series:
XD5-40
Product Model:
XD5-40d
Product Name:
4-inch Direct Thermal Desktop Label Printer
Product Type:
Direct Thermal Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Barcode Symbology Supported:
Codabar,Code 11,Code 39,Code 93,Code 128,EAN-13,EAN-8,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Plessey,POSTNET,GS1 DataBar,Standard 2 of 5,UPC/EAN,UPC-A,UPC-E,IMB,Aztec Code,Codablock,Code 49,Data Matrix,Maxi Code,Micro PDF-417,PDF417,QR Code
Connectivity Technology:
Wireless
Fonts Included:
10 SLCS,One SLCS,16 BPL-Z,One BPL-Z,5 BPL-E,23 Code Page,Unicode supported,UTF-8,UTF-16LE,UTF-16BE
Application/Usage:
Desktop
Features:
Compact,LCD Display
Standard Memory:
64 MB
USB Host:
Yes
USB:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Display Screen:
Yes
Display Screen Type:
LCD
Media Type:
Label,Gap,Black Mark,Notch,Fanfold,Continuous Label
Media Sensor:
Transmissive Media Sensor,Reflective Media Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Language Emulation:
SLCS,BPL-Z,BPL-D,BPL-E
Power Source:
Power Adapter,AC Supply
Input Voltage:
120 V AC,230 V AC
Operating Temperature:
32°F (0°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Product Color:
Black
Height:
6.7"
Width:
7.6"
Depth:
9.8"
Weight (Approximate):
4.17 lb
Power Cable Localization:
US
Optional Connectivity:
Bluetooth,Ethernet,Serial (RS-232)
Platform Supported:
PC,Android,iOS,Mac
Energy Star:
Yes
sku variation:
The Bixolon XD5-40DWK is also known as BIX-XD540DWK or XD540DWK
Brand Logo:
https://content.etilize.com/Brand-Logo/1073137827.jpg
Short Description:
Bixolon, XD5-40DWK, Black Color, Built In Usb, USB Host, Wifi, 7IPS Printing Speed, Direct Thermal, 203 Dpi, Power Supply / US Power Cord, Warranty: Limited 2 Years - TPH 1 Year
