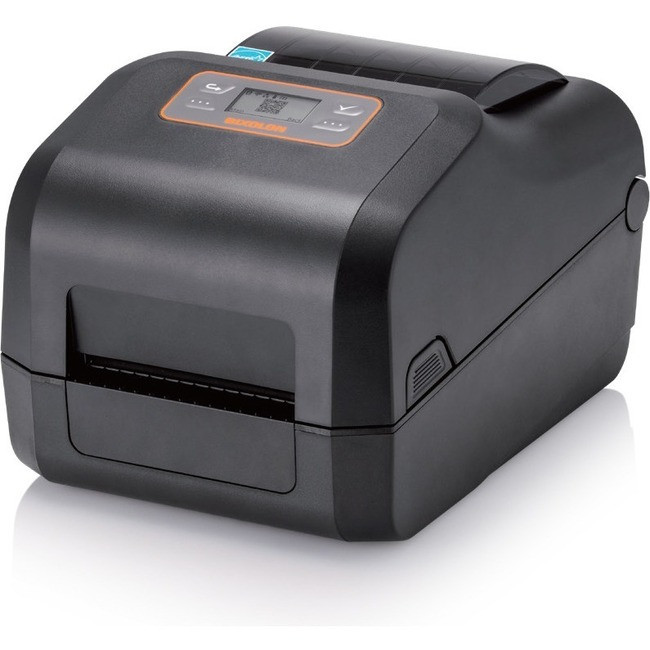

The mid-tier 4-inch (118mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74m and 300m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.
-
SKU:
- 1073137840
Manufacturer:
Bixolon America, Inc
Manufacturer Part Number:
XD5-40TDEBK
Manufacturer Website Address:
http://www.bixolon.com
Brand Name:
Bixolon
Product Series:
XD5-40
Product Model:
XD5-40t
Product Name:
4-inch Thermal Transfer Desktop Label Printer
Product Type:
Direct Thermal/Thermal Transfer Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.25"
Barcode Symbology Supported:
Codabar,Code 11,Code 39,Code 93,Code 128,EAN-13,EAN-8,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Plessey,POSTNET,GS1 DataBar,Standard 2 of 5,UPC/EAN,UPC-A,UPC-E,IMB,Aztec Code,Codablock,Code 49,Data Matrix,Maxi Code,Micro PDF-417,PDF417,QR Code
Connectivity Technology:
Wired
Fonts Included:
10 SLCS,One SLCS,16 BPL-Z,One BPL-Z,5 BPL-E,23 Code Page,Unicode supported,UTF-8,UTF-16LE,UTF-16BE
Peel Facility:
Yes
Application/Usage:
Desktop
Features:
Compact,LCD Display
Standard Memory:
64 MB
USB Host:
Yes
Serial Port:
Yes
USB:
Yes
Ethernet:
Yes
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Display Screen:
Yes
Display Screen Type:
LCD
Media Type:
Label,Gap,Black Mark,Notch,Fanfold,Continuous Label
Media Sensor:
Transmissive Media Sensor,Reflective Media Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Language Emulation:
SLCS,BPL-Z,BPL-D,BPL-E
Power Source:
Power Adapter,AC Supply
Input Voltage:
120 V AC,230 V AC
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Product Color:
Black
Height:
7.4"
Width:
8.3"
Depth:
11.2"
Weight (Approximate):
5.47 lb
Power Cable Localization:
US
Optional Connectivity:
Wireless LAN
Platform Supported:
PC,Android,iOS,Mac
Energy Star:
Yes
sku variation:
The Bixolon XD5-40TDEBK is also known as BIX-XD540TDEBK or XD540TDEBK
Brand Logo:
https://content.etilize.com/Brand-Logo/1073137840.jpg
Short Description:
Bixolon, XD5-40TDEBK, Black Color, Peeler, Built In Usb, USB Host, Ethernet, Bluetooth, Serial, 6IPS Printing Speed, Thermal Transfer, 203 Dpi, Power Supply / US Power Cord, Warranty: Limited 2 Years
