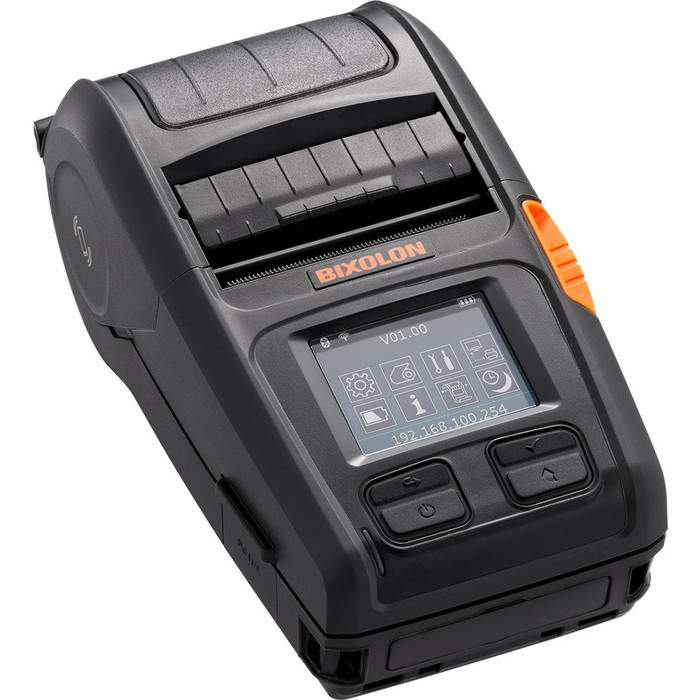

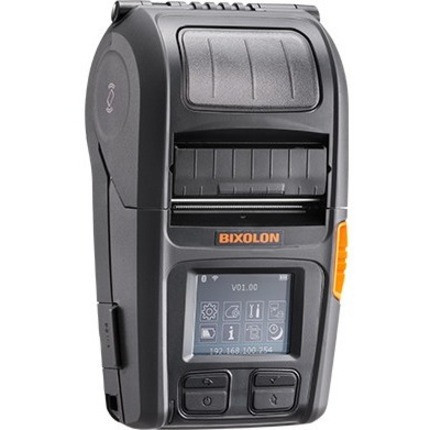

Main image for Bixolon XM7-20 Mobile Direct Thermal Printer - Monochrome - Label Print - USB - Serial - Bluetooth - Near Field Communication (NFC) - Battery Included - Black

Bixolon XM7-20 Mobile Direct Thermal Printer - Monochrome - Label Print - USB - Serial - Bluetooth - Near Field Communication (NFC) - Battery Included - Black XM7-20IWK

Part #: XM7-20IWK

By Bixolon

Product Highlights

Bixolon, 2", XM7-20IWK, Black, Usb, BT V5.0, Wlan 802.11A/B/G/N,152MM/SEC Print Speed, Tear Bar, 58MM Paper Width, UP To 57MM Dia, TFT Lcd, Transmissive Sensor

MSRP: $1,054.00
$658.59
(You save $395.41 )

In stock

Adding to cart… The item has been added
Quantity discount
2 + Contact
Specifications
Manufacturer: Bixolon America, Inc
Manufacturer Part Number: XM7-20IWK
Manufacturer Website Address: http://www.bixolon.com
Brand Name: Bixolon
Product Series: XM7
Product Model: XM7-20
Product Name: XM7-20 Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 5.98 in/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 1.89"
Barcode Symbology Supported:
  • 1D
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-E
  • IMB
  • 2D
  • AZTEC
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • TLC 39

Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 7 BPL-C
  • 23 Code Page
  • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)

Application/Usage: Mobile
Features:
  • Tear Bar
  • LCD Display
  • Compact
  • Rugged
  • Water Proof
  • Dust Resistant
  • Drop Resistant

Mobile Device Printing: Yes
Wireless Print Technology: Wi-Fi Direct
Interfaces/Ports
Serial Port: Yes
USB: Yes
Network & Communication
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n
Near Field Communication (NFC): Yes
Display & Graphics
Display Screen: Yes
Display Screen Type: LCD
Media Types & Handling
Media Type:
  • Label
  • Notch
  • Receipt

Media Sensor:
  • Transmissive Media Sensor
  • Paper End Sensor
  • Gap Sensor
  • Black Mark Sensor

Media Thickness: 7.48 mil
Maximum Roll Diameter: 2.24"
Maximum Label Width: 2.28"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • BXL/POS
  • BPL-C

Software
Operating System Supported: Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB Driver, Utility Program, LabelArtist-II™, Bartender UL, OPOS / JPOS Driver, SAP® Device Driver
Reliability
Ingress Protection (IP) Rating: IP54
Power Description
Power Source: Battery
Battery Information
Battery Included: Yes
Environmental Conditions
Operating Temperature: 5°F (-15°C) - 122°F (50°C)
Operating Relative Humidity: 10% - 80%
Storage Temperature: -22°F (-30°C) - 158°F (70°C)
Physical Characteristics
Product Color: Black
Height: 2.7"
Width: 6.6"
Depth: 3.7"
Weight (Approximate): 1.32 lb
Miscellaneous
Platform Supported:
  • iOS
  • Android
  • PC

Energy Star: Yes
SKU:
1071999354
Manufacturer:
Bixolon America, Inc
Manufacturer Part Number:
XM7-20IWK
Manufacturer Website Address:
http://www.bixolon.com
Brand Name:
Bixolon
Product Series:
XM7
Product Model:
XM7-20
Product Name:
XM7-20 Direct Thermal Printer
Product Type:
Direct Thermal Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
1.89"
Barcode Symbology Supported:
1D,Codabar,Code 11,Code 39,Code 93,Code 128,EAN-13,EAN-8,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Plessey,POSTNET,GS1 DataBar,Standard 2 of 5,UPC/EAN,UPC-E,IMB,2D,AZTEC,Codablock,Code 49,Data Matrix,Maxi Code,Micro PDF-417,PDF-417,QR Code,TLC
Fonts Included:
10 SLCS,One SLCS,16 BPL-Z,One BPL-Z,7 BPL-C,23 Code Page,Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Application/Usage:
Mobile
Features:
Tear Bar,LCD Display,Compact,Rugged,Water Proof,Dust Resistant,Drop Resistant
Mobile Device Printing:
Yes
Wireless Print Technology:
Wi-Fi Direct
Serial Port:
Yes
USB:
Yes
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Near Field Communication (NFC):
Yes
Display Screen:
Yes
Display Screen Type:
LCD
Media Type:
Label,Notch,Receipt
Media Sensor:
Transmissive Media Sensor,Paper End Sensor,Gap Sensor,Black Mark Sensor
Media Thickness:
7.48 mil
Maximum Roll Diameter:
2.24"
Maximum Label Width:
2.28"
Language Emulation:
SLCS,BPL-Z,BXL/POS,BPL-C
Operating System Supported:
Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB Driver, Utility Program, LabelArtist-II&trade, Bartender UL, OPOS / JPOS Driver, SAP® Device Driver
Ingress Protection (IP) Rating:
IP54
Power Source:
Battery
Battery Included:
Yes
Operating Temperature:
5°F (-15°C) - 122°F (50°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-22°F (-30°C) - 158°F (70°C)
Product Color:
Black
Height:
2.7"
Width:
6.6"
Depth:
3.7"
Weight (Approximate):
1.32 lb
Platform Supported:
iOS,Android,PC
Energy Star:
Yes
sku variation:
The Bixolon XM7-20IWK is also known as BIX-XM720IWK or XM720IWK
Brand Logo:
https://content.etilize.com/Brand-Logo/1071999354.jpg
Short Description:
Bixolon, 2", XM7-20IWK, Black, Usb, BT V5.0, Wlan 802.11A/B/G/N,152MM/SEC Print Speed, Tear Bar, 58MM Paper Width, UP To 57MM Dia, TFT Lcd, Transmissive Sensor
