The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.
-
SKU:
- 1023731614
Manufacturer:
Zebra Technologies Corporation
Manufacturer Part Number:
ZE50042-R010000Z
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Series:
ZE500
Product Model:
ZE500-4
Product Name:

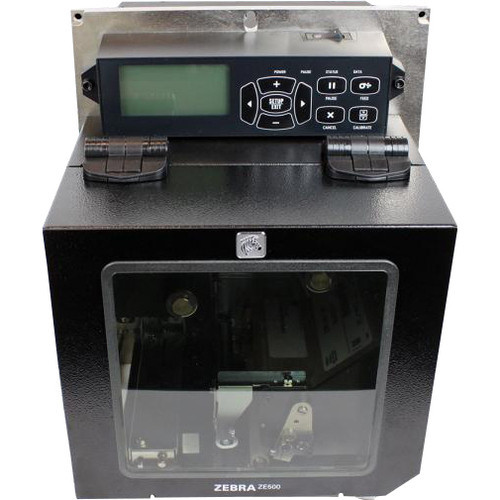

ZE500-4 Label Printer Right-Handed
Product Type:
Thermal Transfer Printer
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-E,UPC-A,EAN-13,EAN-8,UPC 2 or 5 Digit Extension,EAN With 2 or 5 Digit Extension,Plessey,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Coda
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Element Energy Equalizer,Rotatable Display
Standard Memory:
16 MB
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display Screen:
Yes
Display Screen Type:
LCD
Media Type:
Black Mark,Continuous Label,Die-cut Label
Media Sensor:
Transmissive Media Sensor,Reflective Media Sensor
Media Thickness:
10 mil
Maximum Label Width:
4.49"
Maximum Label Length:
39"
Language Emulation:
ZPL,ZPL 1,ZPL II
Power Source:
AC Supply
Input Voltage:
110 V AC,220 V AC
Height:
11.8"
Width:
9.6"
Depth:
14.9"
Weight (Approximate):
33.95 lb
Package Contents:
- ZE500-4 Label Printer Right-Handed
- ZebraNet Connectivity Guide
- Software & Drivers CD
- North America Power Cords
- User's Guide
- ZPL II Programming Guide
Platform Supported:
PC
Certifications & Standards:
- IEC 60950-1
- EN55022
- Class A
- EN55024
- EN61000-3-2, 3-3
- NRTL
- CE
- FCC A
- ICES-003
- VCCI
- C-Tick
- CCC
- NOM
- Gost-R
- S- Mark
- KCC
Country of Origin:
China
sku variation:
The Zebra ZE50042-R010000Z is also known as ZEB-ZE50042R010000Z or ZE50042R010000Z
Brand Logo:
https://content.etilize.com/Brand-Logo/1023731614.jpg
Short Description:
Zebra Ait, Discontinued, Refer To ZE51142-R010000Z, PAX Printer Engine, ZE500-4, 203 Dpi, Right Hand, RS-232 Serial, Parallel USB 2.0, Internal Zebranet 10/100 Print Server, 120 VAC Powercord
