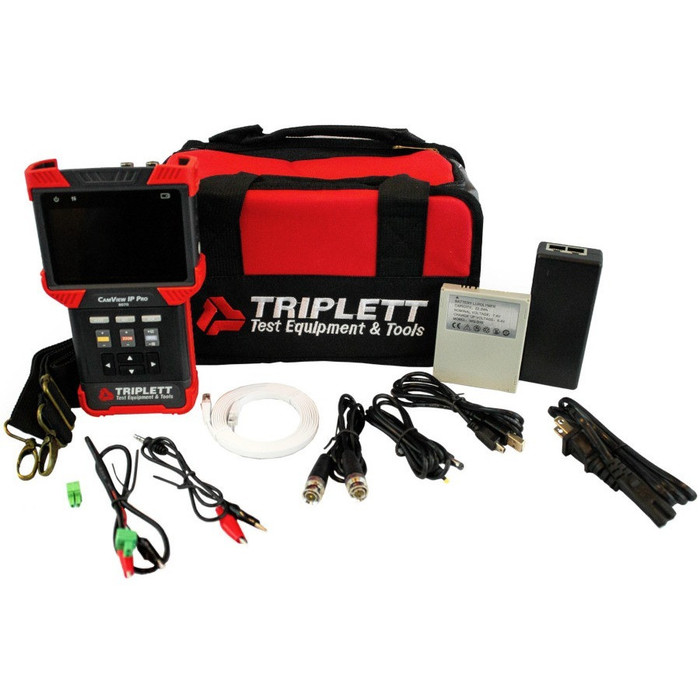

Triplett CamView IP Pro 8070 CCTV Test Meter 8070

• Built-in keyboard
• Analog Camera Test & RS485 PTZ Control Test
• Powers Analog cameras - 12 VDC @ <2A
• 10M/100M/1G Ethernet Link Test
• Packet Loss Test
• Ethernet Loop Detection
• Record, save and export full IP camera reports
• IP camera tests including: discover the camera, view cameras video, configure cameras parameters, etc.
• Powers IP cameras - no need for external PoE
• Works with or without a network.
• Built-in DHCP server allows you to set & assign IP addresses to cameras, auto-detect IP settings on networks, plus Ping, Sniff & List Subnet
• Works with the most popular IP cameras PLUS NTSC/PAL, AHD & TVI Analog cameras!
• AHD & TVI (Up to 2mpx)

The CamView IP Pro+ works with IP and Analog SD cameras, as well as AHD and HD-TVI models to allow you to test, verify, and troubleshoot cameras, cables, and networks even before the network is setup, or even before the power is setup. It works with the most popular AHD, HD-TVI, IP, and Analog NTSC/PAL cameras. Compact, lightweight, and ruggedized for real-world use, the CamView IP Pro also features an intuitive user interface.

TROUBLESHOOTING SIMPLIFIED

With an intuitive user interface, and no need to download Apps or manufacturer-specific software, the CamView IP Pro is your security camera test solution.

NO NETWORK REQUIRED

The built-in DHCP server allows you to set and assign IP addresses to cameras, auto-detect IP settings on networks, as well as ping, sniff, and list subnet. You can also record, save, and export full IP camera reports.

NO POWER REQUIRED

The CamView powers IP cameras without the need for external PoE and powers analog cameras--12 VDC @ < 2A. IP camera tests include: discover the camera, view camera's video, configure camera's parameters, and more.

BUILT-IN TESTING

The CamView IP features an analog camera test, a RS485 PTZ control test, and TDR cable tests. Ethernet tests include: 10M/100M/1G Ethernet link test, packet loss test, and Ethernet loop detection.
