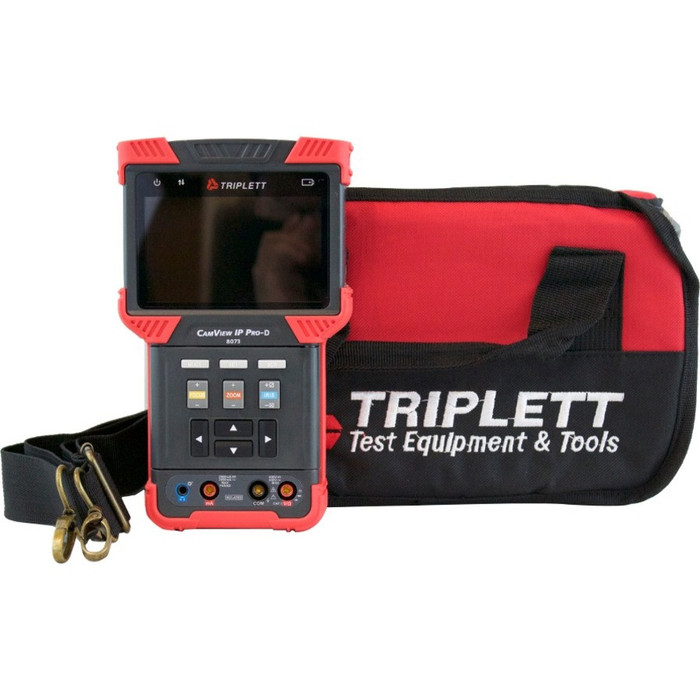

Triplett CamView IP Pro- D Security Camera Tester - (8073) 8073

The CamView IP Pro, Pro+, and Pro-D are designed to facilitate the installation and maintenance of surveillance video equipment. The Tester works with both Standard Definition analog NTSC/PAL camera systems, High Definition Analog, and ONVIF conformant IP (Ethernet) camera systems. Also, the testers provide an RS485 port for PTZ control of analog PTZ cameras and can provide POE for operating IP cameras, or 12VDC (not to exceed 2A) to power analog cameras. The IP Camera Tester allows you to perform Ethernet and network tests, capture video (snapshots and video recording), playback video, generate video test patterns for monitor checking and perform analog camera testing. They also allow you to check microphone/audio sources and even provide a bright flashlight function. Both recorded images and video can be transferred to PCs or other devices via the USB port connection. The IP Pro (8070) works with IP and NTSC/PAL cameras. The IP Pro+ (8071) supports H.264 IP cameras, as well as NTSC/PAL and AHD 1.0 and HD-TVI 2.0 analog video cameras. The IP Pro-D (8073) supports H.264 and H.265 IP cameras, as well as NTSC/PAL, AHD 2.0, CVI 3.0, and TVI 3.0 cameras. In addition the IP Pro-D has a built-in True RMS multimeter that can measure AC/DC Voltage and Current, Resistance, Capacitance, Diode and Continuity tests. All models: work with ONVIF-enabled IP cameras; have a built-in DHCP server so you can set up IP cameras before the network is even wired; provide PoE and external power for the camera (up to 12V, 15W); include a Code Book so you can save usernames and passwords of the cameras you frequently access/maintain; feature a full, flip-out keyboard for quickly entering information; capture images, videos, and camera settings so you can crete reports; have TDR cable testing and network testing. All models come complete with Lanyard, Rechargeable Battery,Tool Bag with Shoulder Strap, POE Power Injector, Network Cable, BNC Cable, RS485 Cable, 12V Power Output Cable, Audio Cable, USB Cable, Screen Protector Film, and Test Leads (Pro-D model only).
