The Gryphon GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.
Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.
-
SKU:
- 1019703403
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
GFS4150-9
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
Gryphon
Product Series:
4100
Product Model:
GFS4150-9
Product Name:

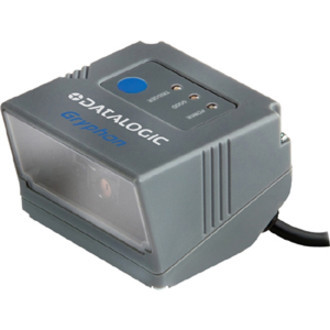

Gryphon GFS4150-9 Fixed Mount Bar Code Reader
Product Type:
Barcode Scanner
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
320 scan/s
Host Interface:
Serial
Form Factor:
Fixed Mount
Product Color:
Gray
Height:
1.5"
Width:
2.2"
Depth:
2.3"
Weight (Approximate):
6 oz
sku variation:
The Datalogic GFS4150-9 is also known as DAT-GFS41509 or GFS41509
Brand Logo:
https://content.etilize.com/Brand-Logo/1019703403.jpg
Short Description:
Datalogic Adc, Gryphon Fixed Scanner, 1D Imager, RS-232(9P)
