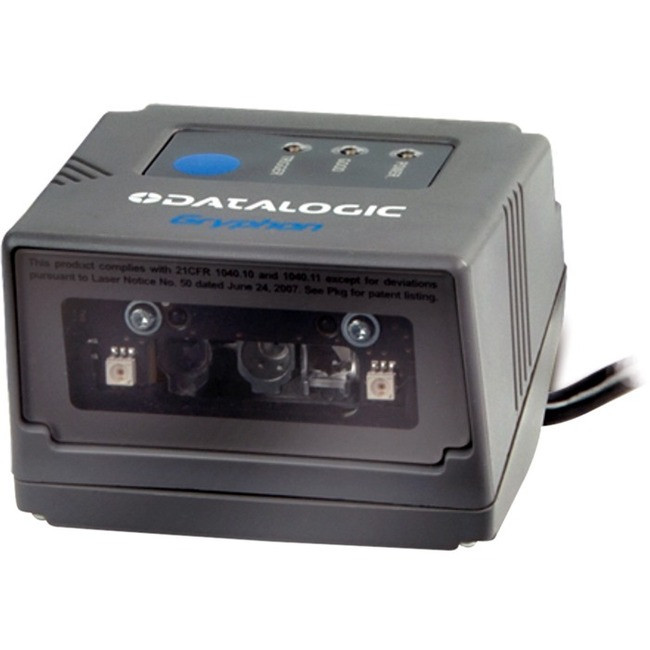

The Gryphon™ 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon™ GFS4400 2D fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.
Designed for easy integration, the Gryphon GFS4400 2D module provides a 'plug-and-play' solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.
-
SKU:
- 1022926733
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
GFS4470
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
Gryphon
Product Series:
4000
Product Model:
GFS4400
Product Name:
Fixed Mount Area Imager Bar Code Reader
Packaged Quantity:
1
Product Type:
Barcode Scanner
Connectivity Technology:
Cable
Scanning Capability:
1D,2D
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates all Standard 1D Codes
- GS1 DataBar Linear Codes
2D Codes:
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code<
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
16.50"
Cable Type Included:
USB
Reading Angle (Skew):
40°
Reading Angle (Pitch):
40°
Reading Angle (Roll):
180°
Image Formats:
BMP,JPEG,TIFF
Maximum Ambient Light:
100000 lux
Drop Specification:
Withstands repeated drops from 0.76 m / 2.50 ft onto a concrete surface
Minimum Print Contrast:
25%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
10 mil
Minimum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (DataMatrix):
25 mil
Minimum Element Resolution (PDF417):
4 mil
Maximum Element Resolution (PDF417):
10 mil
Host Interface:
USB
Form Factor:
Fixed Mount
Product Color:
Gray
Height:
5.1"
Width:
3"
Length:
3.3"
Weight (Approximate):
6 oz
Ingress Protection (IP) Rating:
IP54
Application/Usage:
Industrial
Country of Origin:
Vietnam
sku variation:
The Datalogic GFS4470 is also known as DAT-GFS4470 or GFS4470
Brand Logo:
https://content.etilize.com/Brand-Logo/1022926733.jpg
Short Description:
Datalogic Adc, GFS4400, Gryphon Fixed Scanner, 2D, USB
