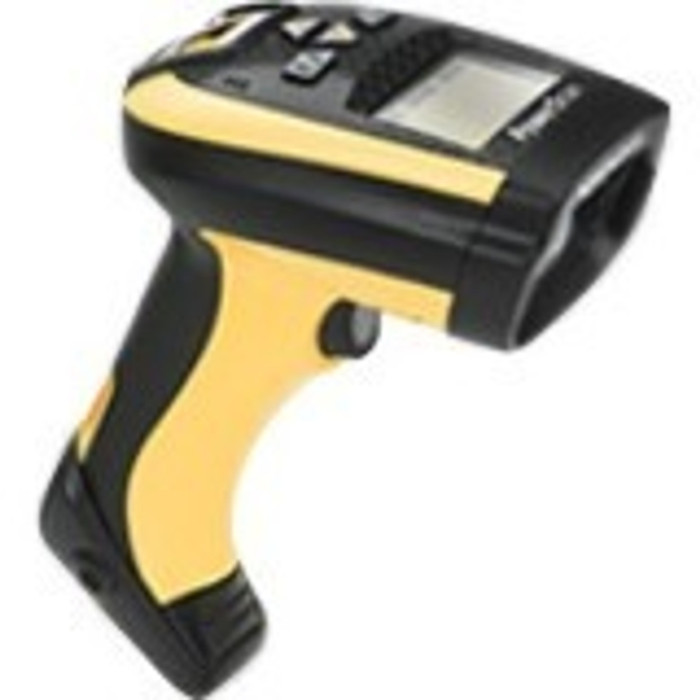

Datalogic PowerScan PM9600 Barcode Scanner PM9600-DHP910RB

Part #: PM9600-DHP910RB

Product Highlights

Datalogic, 9600, Powerscan PM9600, High Performance, 910MHZ, DISPLAY/4-KEY Keypad, Removable Battery

MSRP: $1,290.00
$915.14
(You save $374.86 )

In stock

Adding to cart… The item has been added
Quantity discount
2 + Contact

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial Mobile scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

WIRELESS CHARGING

The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

SKU:
1073009173
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
PM9600DHP910RB
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
PowerScan
Product Model:
PM9600
Product Name:
PowerScan PM9600 Barcode Scanner
Product Type:
Barcode Scanner
Connectivity Technology:
Wireless
Scanning Capability:
1D,2D
Barcode Symbology Supported:

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar&trade linear codes

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
Scan Pattern:
Omni-directional
Display Screen:
Yes
Number of Keys:
4
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Radio Frequency:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
2.50 Hour
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
95%
Form Factor:
Mobile
Rugged:
Yes
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
15.70 oz
Ingress Protection (IP) Rating:
IP65,IP67
Application/Usage:
Manufacturing,Warehouse,Logistics,Picking,Inventory,Asset Tracking
sku variation:
The Datalogic PM9600-DHP910RB is also known as DAT-PM9600DHP910RB or PM9600DHP910RB
Brand Logo:
https://content.etilize.com/Brand-Logo/1073009173.jpg
Short Description:
Datalogic, 9600, Powerscan PM9600, High Performance, 910MHZ, DISPLAY/4-KEY Keypad, Removable Battery

The Datalogic PM9600-DHP910RB is also known as DAT-PM9600DHP910RB or PM9600DHP910RB
