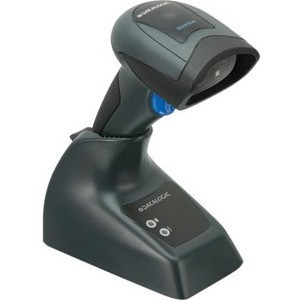

The QuickScan™ QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.
Featuring Datalogic's STAR Cordless System™ 2.0, the QuickScan QM2400 2D provides a simple point-to-point connection with secure radio communications with no risk of interference with Wi-Fi infrastructures and very low sensitivity to obstacles.
The QuickScan QM2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.
-
SKU:
- 1032236612
Manufacturer:
Datalogic S.p.A
Manufacturer Part Number:
QM2430-BK-433K1
Manufacturer Website Address:
http://www.datalogic.com
Brand Name:
Datalogic
Product Line:
QuickScan I
Product Model:
QM2430
Product Name:
QuickScan I QM2430 Mobile Barcode Scanner Kit
Packaged Quantity:
3
Product Type:
Barcode Scanner Kit
Connectivity Technology:
Wireless
Scanning Capability:
1D,2D
Barcode Symbology Supported:
1D / Linear Codes:
- Autodiscriminates all standard 1D codes including GS1 DataBar&trade linear codes
2D Codes:
- Aztec Code
- Aztec Mesas
- Data Matrix
- MaxiCode
- QR Code
- Mic
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanning Distance:
13.78"
Cable Type Included:
USB
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
25 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 4.9 ft onto a concrete surface.
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.6 mil
Bluetooth:
Yes
Radio Frequency:
Yes
Host Interface:
USB
Battery Chemistry:
Lithium Ion (Li-Ion)
Form Factor:
Mobile
Product Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
7.05 oz
Ingress Protection (IP) Rating:
IP42
Application/Usage:
Retail,Industrial
sku variation:
The Datalogic QM2430-BK-433K1 is also known as DAT-QM2430BK433K1 or QM2430BK433K1
Brand Logo:
https://content.etilize.com/Brand-Logo/1032236612.jpg
Short Description:
Datalogic Adc, Quickscan Mobile QM2430, 433 M
User-Manual:
https://content.etilize.com/User-Manual/1032236612.pdf
